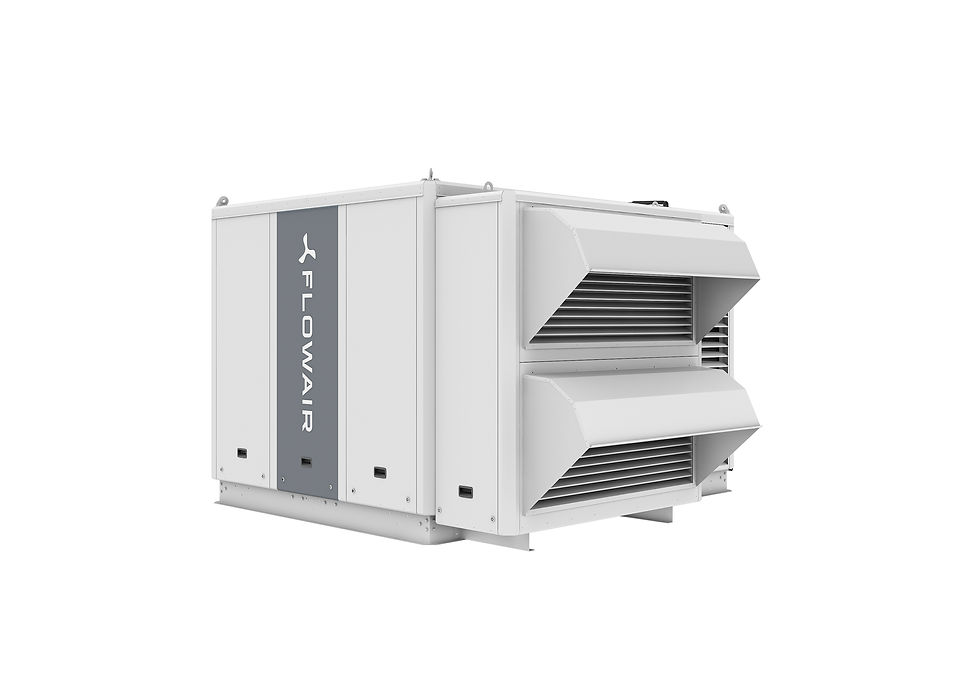

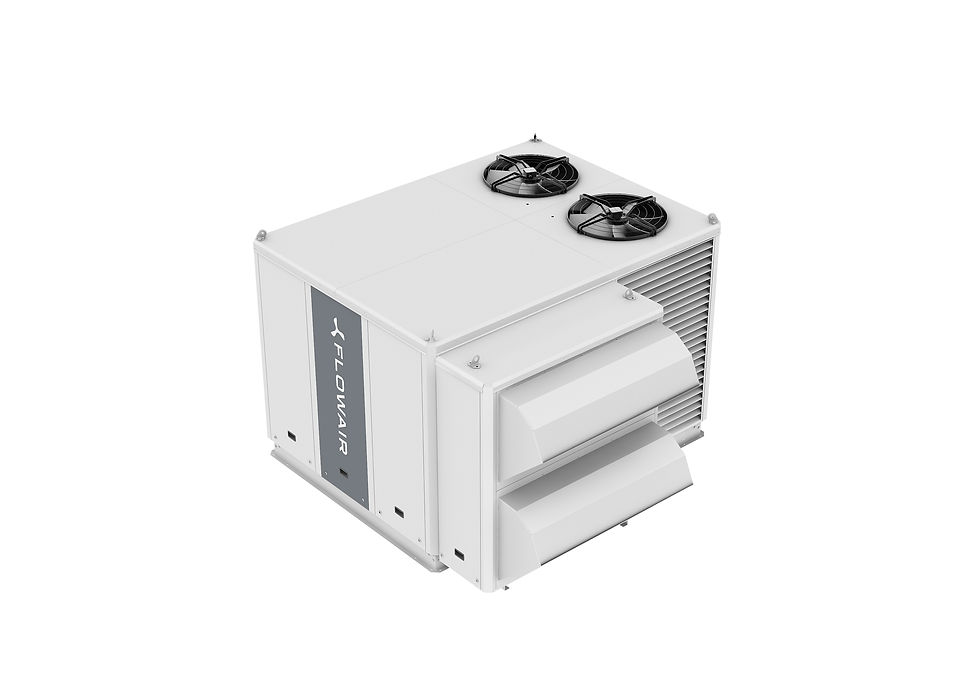

Flowair Cube 20-160 Ventilation Unit
This advanced roof-mounted heat recovery ventilation system is designed to provide efficient heating, cooling, and ventilation with a high level of heat recovery. It integrates several key components into a single, compact casing, offering a comprehensive solution for climate control in commercial and industrial settings.
Integrated Components:
​
Cooling Unit – Efficiently cools the incoming air, ensuring a comfortable indoor environment even during hot weather.
Rotary Heat Exchanger – Facilitates the transfer of heat between the outgoing and incoming air streams, significantly enhancing energy efficiency by recovering heat that would otherwise be lost.
​
Heater – Provides necessary warmth during colder periods, maintaining comfortable indoor temperatures.
Siemens Climatix Control System – A sophisticated control system that allows precise management of the unit’s operations, optimising performance and energy usage.
EC (Electronically Commutated) Fans: Equipped with energy-efficient EC fans that offer variable speed control, reduced energy consumption, and quieter operation.
Heating Options:
The unit can be configured with various heating mechanisms to cater to diverse needs:
LPHW (Low Pressure Hot Water) Heat Exchanger – Utilises hot water from a central boiler system and/or heat pump to provide heating.
Electric Heat Exchanger – Uses electric resistance elements to generate heat, suitable for locations where electric power is the preferred or available energy source.
Reversible Heat Pump and Electric Function – Provides both heating and cooling capabilities, offering a versatile solution that can adapt to seasonal temperature changes.
Gas Heat Exchanger – Employs gas combustion to produce heat, an efficient option where gas supply is available and cost-effective.
Without Additional Heater – Can be used solely for ventilation and heat recovery without additional heating, ideal for environments where external heating is not needed.
Performance Specifications:
Cooling Capacity – Offers up to 160kW of cooling capacity, making it suitable for large spaces requiring significant cooling power.
Airflow Capacity – Handles air volumes up to 28,000m³/h, ensuring adequate ventilation for a wide range of building sizes.
Heat Recovery Efficiency – Achieves over 73% efficiency in heat recovery, maximising energy savings by reclaiming heat from exhaust air.
Heating Capacity – Delivers heating output ranging from 20 to 181kW, providing the flexibility to meet various heating demands.
The Flowair Cube 20-160 roof-mounted heat recovery ventilation unit is designed for easy installation and maintenance, making it an excellent choice for buildings aiming to improve their energy efficiency, indoor air quality, and overall climate control through advanced heat recovery and integrated cooling capabilities. Contact us today to arrange your free site survey.
